Marine Exhaust Manifold

 It's not just what we make,
    it's what we make possible!
larger image

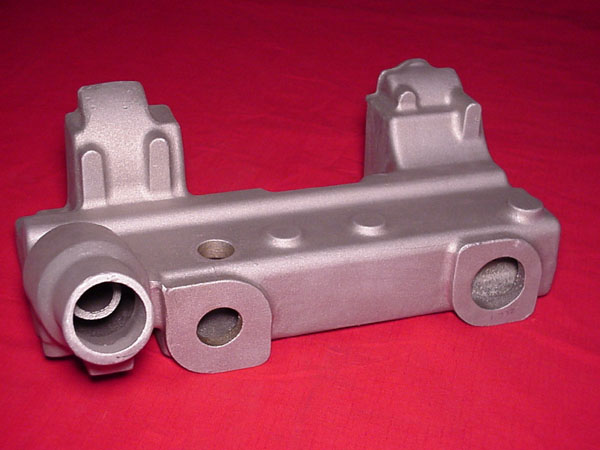

Part: Water Cooled Marine Exhaust Manifold
Program:

  • 2 DSPC prototype castings
  • 20 prototypes from DSPC "Soft" tool
  • Production run 6,000

Approximate part size: 16" x 8" x 6"

Material: 356-T6 aluminum
Delivered:

  • DSPC prototypes 3 weeks as cast
  • 20 prototypes from soft tool 5-6 weeks
  • First article from a DSPC (aluminum cast) Production tool 6 weeks, production 500-600 parts / month

Production casting method: Sand Casting.
Special challenges: Complex core cavities (7 cores)
